1064 nm YAG Nanosecond Laser: An Introduction to a Versatile Solid-State Laser

Abstract

The 1064 nm YAG nanosecond laser is a widely adopted solid-state laser system based on neodymium-doped yttrium aluminum garnet as the gain medium, delivering high-energy pulses in the nanosecond regime. Leveraging Q-switching technology, this laser produces short-duration pulses with exceptionally high peak power, enabling precise material processing, advanced dermatological treatments, and scientific research applications. This introduction provides an overview of its operating principles, key technical specifications, diverse applications across medical and industrial fields, and a comparison with other common laser technologies.

1. Introduction

The 1064 nm Nd:YAG nanosecond laser represents one of the most mature and versatile solid-state laser systems available today. As a solid-state laser, it employs an Nd:YAG crystal doped with neodymium ions as the active gain medium, producing laser emission at a fundamental wavelength of 1064 nm in the near-infrared spectrum, which is invisible to the human eye. When operated in pulsed mode with pulse durations on the order of nanoseconds (

10−9 seconds), this laser achieves extremely high peak powers while maintaining precise control over energy delivery. The combination of deep tissue penetration (for medical applications), efficient absorption by various materials (for industrial processing), and the ability to generate harmonics (532 nm green, 355 nm UV) makes the 1064 nm YAG nanosecond laser an indispensable tool across numerous disciplines.

2. Operating Principle and Key Technologies

The fundamental operating principle of a 1064 nm YAG nanosecond laser relies on a solid-state gain medium——Nd:YAG crystal, where trivalent neodymium ions are doped into the yttrium aluminum garnet host lattice. When optically pumped by either flashlamps (lamp-pumped) or laser diodes (diode-pumped solid-state, DPSS), the neodymium ions undergo electronic transitions, ultimately generating stimulated emission at 1064 nm.

To achieve nanosecond pulse durations, Q-switching technology is employed. Q-switching rapidly modulates the quality factor (Q-factor) of the laser cavity: it initially prevents lasing while the gain medium accumulates energy, then suddenly switches the cavity to a low-loss state, releasing the stored energy in a single, powerful nanosecond pulse. Two primary Q-switching methods are commonly used:

• Passive Q-switching: Utilizes a saturable absorber (e.g., Cr:YAG crystal) that becomes transparent when sufficient energy is accumulated. This method produces compact, low-cost laser systems with pulse widths typically of $<10$ ns.

• Active Q-switching: Employs an electro-optic modulator, such as a Pockels cell, which provides precise electronic control over pulse timing and delivers superior energy stability (pulse-to-pulse stability of

  $<3\mathrm{\%}$

  <3% ). Active Q-switching enables higher repetition rates and synchronization with external systems.

The energy storage characteristics of the Nd:YAG medium allow for substantial pulse energy extraction, ranging from microjoules to multiple joules per pulse depending on the system design and pump configuration.

3. Technical Specifications and Performance

1064 nm YAG nanosecond lasers are available across a broad spectrum of performance specifications, catering to diverse application requirements. Typical parameter ranges in

4. Applications

4.1 Medical and Dermatological Applications

The 1064 nm wavelength penetrates deeply into dermal tissues, making it highly effective for treating pigmented lesions, vascular conditions, and performing surgical procedures:

• Tattoo Removal: The Q-switched 1064 nm laser targets dark (black, blue, brown) tattoo inks through selective photothermolysis, fragmenting pigment particles into smaller particles that are subsequently cleared by the body‘s immune system.

• Pigmented Lesions: Treatment of nevus of Ota, café-au-lait macules, freckles, and melasma.

• Skin Rejuvenation: Induces collagen remodeling for treating acne scars and wrinkles.

• Hair Removal: Long-term or permanent hair reduction through selective targeting of melanin in hair follicles.

• Soft Tissue Surgery: Incision, excision, ablation, vaporization, coagulation, and hemostasis for general dermatology and general surgical procedures.

Recent research indicates that focused fractional nanosecond 1064 nm lasers can produce epidermal vacuoles or dermal cavities similar to laser-induced optical breakdown effects typically associated with picosecond lasers, enabling tunable epidermal and dermal repair mechanisms.

4.2 Industrial and Manufacturing Applications

The high peak power and efficient absorption of 1064 nm radiation by metals enable numerous industrial processes:

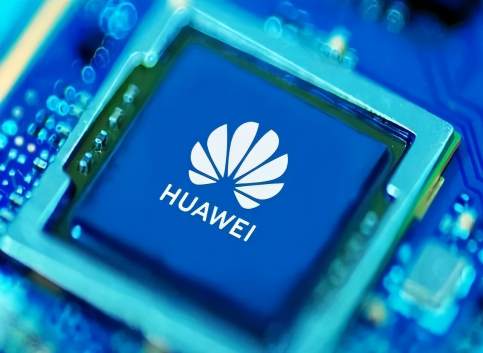

• Laser Marking and Engraving: High-contrast marking on metals, plastics, and ceramics.

• Laser Cleaning and Rust Removal: Selective ablation of surface coatings (paint, rust, oxide layers) without damaging underlying substrates.

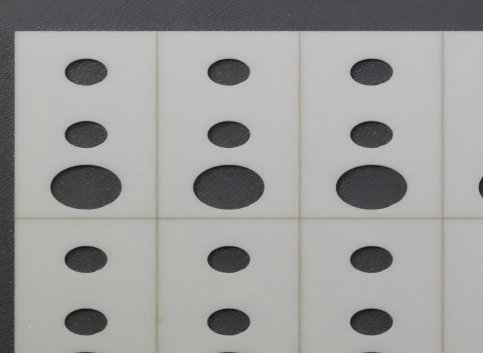

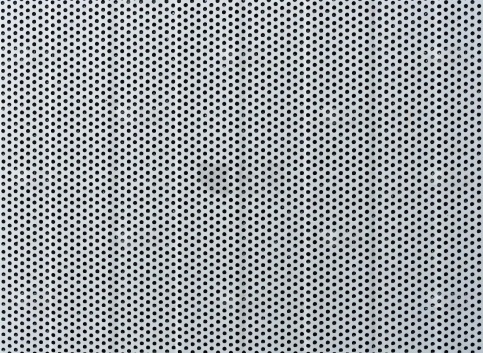

• Precision Micromachining: Via drilling, cutting, and structuring of materials in electronics and semiconductor manufacturing.

• Laser Welding: The 1064 nm wavelength delivers high peak power and efficient absorption by most metals, making it suitable for spot and seam welding in automotive and electronics assembly.

4.3 Scientific Research and Instrumentation

• Laser-Induced Breakdown Spectroscopy: High peak power generates plasma on material surfaces for elemental analysis.

• LIDAR (Light Detection and Ranging): Atmospheric monitoring, remote sensing, and 3D mapping.

• Pumping of Other Laser Systems: Pumping optical parametric oscillators and Ti:sapphire lasers.

• Pulsed Laser Deposition: Thin-film growth for advanced materials research.
