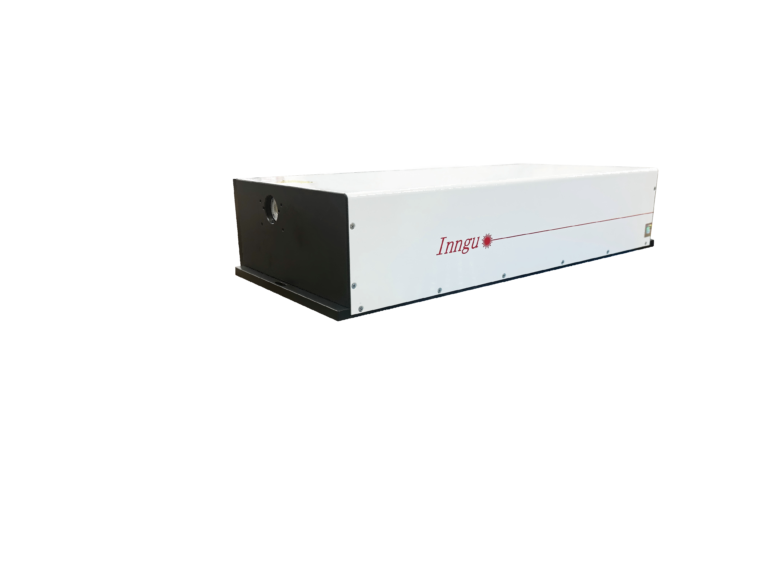

Nanosecond Laser

• Encapsulation in hundred class ultra clean laboratory
• Good beam quality
• High stability for long term running, 24/7 industrial application
• Compact structure and concise interface
• Optional functions of operator lock and alarm setting
• 20W YAG green laser is designed for diamond cutting

• 60W/100W/200W/400W@10kHz(spatial output)
• 55W/90W/180W/360W@10kHz(fiber output)
• Wide pulse width up to 200±40ns@10kHz
• Water chiller provided
• Applied in cutting of extra hard materials

• Pulse Repetition Rate Range: 60kHz-200kHz
• Pulse Width: 10±2ns@100kHz, >100ns@100kHz
• Average Power: ﹥80W, 120W@100kHz﹥120W@200kHz﹥200W@100kHz
• Average Power Stability: <3%RMS over 8 hours
• TEM00(M²<1.3)
• Beam Divergence Full Angle: 0.9±0.3mrad

• Repetition Rate: 6 kHz or 15 kHz
• Pulse Energy 1.5 mJ, 2.0 mJ
• Average Power: 15W-20W@10kHz
• Pulse Width: 50±20ns, 120±20ns@10kHz
• Beam Quality: M² < 1.3
• Beam Diameter: 1.2±0.2mm

The core component of the 266nm UV laser is a diode-pumped solid-state laser. It consists of a laser medium, a pump source and an optical cavity. The laser medium usually uses Nd:YAG (neodymium-doped alumina yttrium) crystals, while the pump source uses a high-power diode laser.
In the working process, the laser generated by the pump source is focused by the optical system and input into the laser medium. The laser medium converts the pumped laser into a higher energy laser through the process of stimulated radiation. After many reflections and amplification, the final ultraviolet laser output of 266nm wavelength is formed.

• Average Power: 60W, 80W, 100W, 120W
• Pulse width: ＜10ns
• Beam Quality: TEM00(M2 <1.4)

• Average Power 100 mW -400 mW
• Pulse Width < 1ns@1kHz, 25±5@5kHz
• Repetition Rate 1 Hz – 10 kHz,  5kHz – 10 kHz
• Pulse Energy 40µJ – 400 µJ
• Beam Quality M² < 1.2

• Encapsulation in hundred class ultra clean laboratory
• Great beam quality(M²＜1.2)
• High stability for long term running, 24/7 industrial application

1342nm infrared laser, as an optical device with unique characteristics and wide application prospects . Its high energy conversion efficiency, excellent beam quality and stability make it widely used in the fields of laser cutting, laser marking and laser welding.
