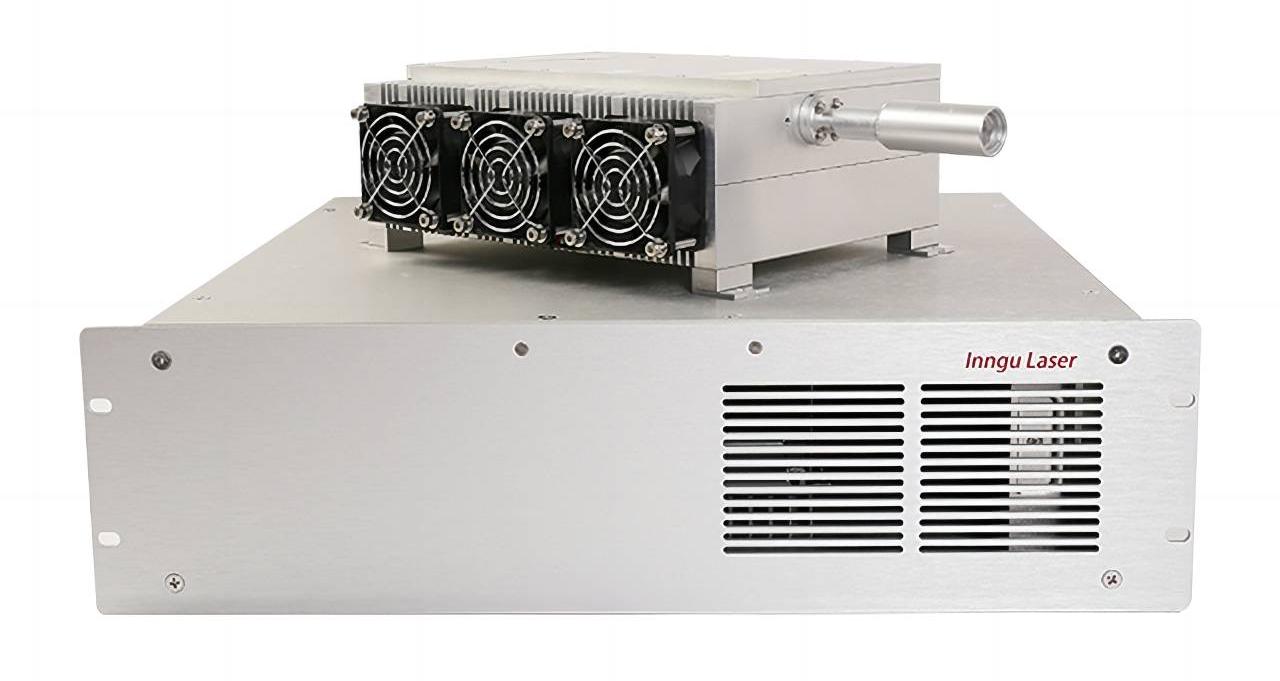

1342nm IR Laser

1342nm infrared laser, as an optical device with unique characteristics and wide application prospects . Its high energy conversion efficiency, excellent beam quality and stability make it widely used in the fields of laser cutting, laser marking and laser welding.

Technical Parameters

MODEL Pulse 1342-5 Pulse 1342-10 Grace X 1342-10
Wavelength 1342nm
Pulse Repetition Rate Range 30kHz to 150kHz 40kHz to 200kHz
Pulse Width 100±10ns@100kHz 50-100ns@50kHz
Average Power >5W@100kHz >10W@100kHz
Average Power Stability <±3% over 24 hours
Pulse-to-Pulse Stability <3%rms
Spatial Mode TEM00(M2 <1.5) TEM00(M2 <1.3)
Beam Divergence Full Angle <3mrad
1/e2 Beam Diameter 0.6±0.1mm 1.0±0.2mm
Beam Roundness >90%
Beam Pointing Stability <50urad
Polarization Direction Horizontal
Polarization Ratio 100:1
Cooling Water-cooling

Application

Product Description

As an important optical device, infrared laser has a wide range of application prospects. Among them, 1342nm infrared laser has attracted wide attention in the commercial field with its unique characteristics and advantages. In this paper, the 1342nm infrared laser will be discussed from three aspects: technical characteristics, commercial applications and prospects, aiming to reveal its great potential in the commercial field.

Technical characteristics

The 1342nm infrared laser is a near-infrared laser with a short wavelength and high power output. Compared with other infrared lasers, the 1342nm infrared laser performs well in terms of energy conversion efficiency, beam quality and stability. This gives it a unique advantage in commercial applications.
First of all, the 1342nm infrared laser has a high energy conversion efficiency, which can effectively convert electrical energy into light energy, reducing energy waste. This provides a more sustainable and environmentally friendly solution for the business sector.
Secondly, the beam quality of the 1342nm infrared laser is excellent, with a small divergence Angle and a high beam quality factor. This makes it widely used in fine processing fields such as laser cutting, laser marking and laser welding. It can not only improve the processing efficiency but also improve the product quality.
Finally, the 1342nm infrared laser has good stability and long life characteristics. This allows it to operate stably for a long time in commercial applications, reducing maintenance costs and risks.

Commercial application

1342nm infrared laser has a wide range of applications in the commercial field. Here are a few typical business application areas:

Laser cutting
1342nm infrared lasers have great potential in the field of metal cutting. Its high power output and excellent beam quality make it possible to achieve high-speed, high-precision metal cutting. Whether it is automotive manufacturing, aerospace or electronic equipment manufacturing, it can benefit from the application of 1342nm infrared lasers. Through laser cutting, it can not only improve production efficiency, but also reduce material waste and reduce production costs.

Laser marking
1342nm infrared laser also has a wide range of application prospects in the field of laser marking. Its high energy conversion efficiency and stability make it an ideal choice for the marking industry. Whether plastic, glass or metal, 1342nm infrared lasers can achieve high-quality marking results. Laser marking can be applied to product identification, anti-counterfeiting traceability and artistic creation, providing more possibilities for business.

Laser welding
1342nm infrared lasers also have unique advantages in the field of laser welding. Its high energy conversion efficiency and stability make it possible to achieve efficient and precise welding operations. 1342nm infrared laser has a wide range of applications in automotive manufacturing, electronic equipment manufacturing, aerospace and other fields. Through laser welding, it can not only improve product quality, but also reduce welding defects and improve production efficiency.

Prospect

As a kind of optical device with unique advantages, 1342nm infrared laser has broad commercial application prospects. With the continuous progress of science and technology and the increase of commercial demand, 1342nm infrared lasers are expected to demonstrate their value in more areas.
In the future, we can foresee that 1342nm infrared lasers will play a greater role in industrial manufacturing, medical devices and communications. At the same time, with the continuous innovation of technology and cost reduction, the commercial application of 1342nm infrared lasers will be more and more popular.

conclusion

In summary, 1342nm infrared laser, as an optical device with unique characteristics and wide application prospects, plays an important role in the commercial field. Its high energy conversion efficiency, excellent beam quality and stability make it widely used in the fields of laser cutting, laser marking and laser welding. In the future, we have reason to believe that 1342nm infrared lasers will bring more innovation and development to the commercial field.
